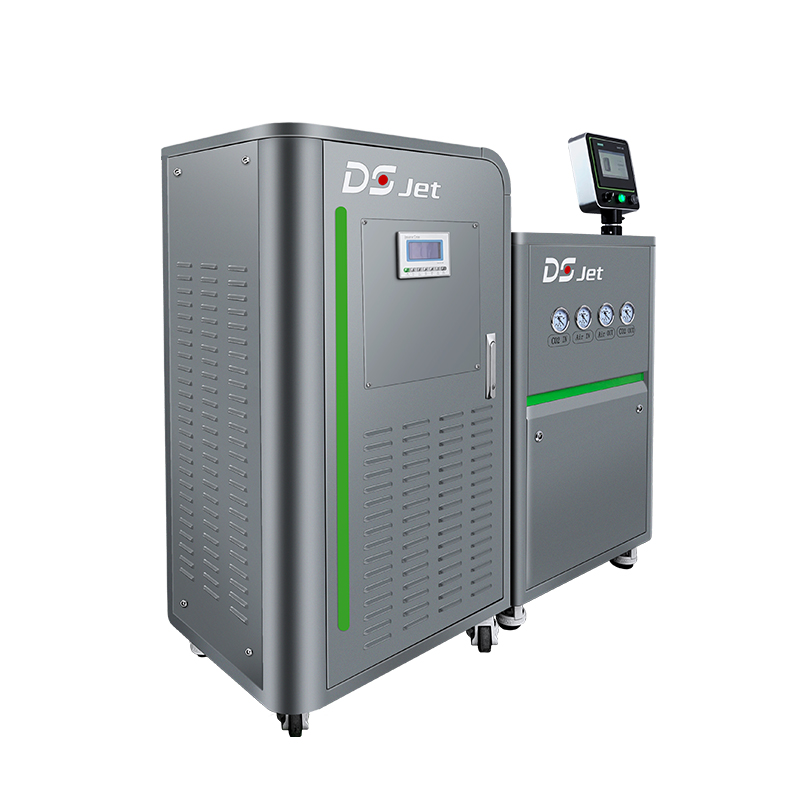

SE-B18WBL split snowflake cleaning machine
Snowflake Cleaner
The snowflake cleaning system developed by DSJet has a large touch screen, which can clean the surfaces of all kinds of precision products, PCBA cleaning, silicon wafer cleaning and chip industry surface cleaning. New energy manufacturing cleaning, lithium battery cleaning, battery tray cleaning, car bumper and other car surface cleaning. Adopt automatic cleaning system, and customize different cleaning schemes according to requirements. More suitable for cleaning needs.
Related accessories
No related accessories!!The design of split snowflake cleaning system has the following advantages.
The quality control simplification module is independently tested and verified, which can detect the problem points in time and effectively.
Demand diversification can meet different needs through modular combination generation.
Customized and flexible users can choose modules according to their needs.
- Maintenance is simple. If the equipment fails, the faulty module can be replaced to avoid replacing the whole machine and reduce unnecessary losses.
Upgrade the sustainable main module, upgrade the key components and extend the product life cycle.
Use experience to optimize the modularization of equipment functions and simplify the complexity of user operation.

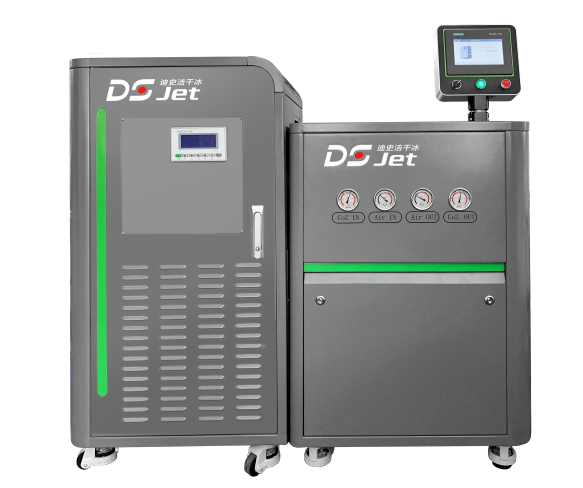

Split snowflake machine is divided into the following two modules.
Refrigerator module and snowflake spraying host module
The refrigerator module consists of the following parts.
1. Refrigeration unit
2. Water bath cooling system
3. Temperature control motherboard components
The main module for spraying snowflakes consists of the following parts.
1. Main controller (PLC+ remote control)
2. Liquid storage assembly
3. Air filter assembly
4. Injection valve assembly
| measure | Snow machine：740mm*600mm*1100mm(L×W×H) refrigerator：700mm*600mm*1280mm(L×W×H) |
| power | 2.3KW |
| Compressed air working pressure | 0.3~0.6MPa |
| CO2 consumption of single nozzle group | 0.5~1.6kg/min |
| Air regulation | 0-0.8MPa |
| CO2 working pressure | 5.5~ 7MPa |
| electric current | 10A |
| weight | 260kg |
Low power and high efficiency
Power optimization design, significantly reduced energy consumption, stable operation with only 220V conventional voltage, energy saving, high efficiency and wide adaptability.
Grouping module design
Modular design can be used alone or in combination, which not only saves costs, but also meets the application of different scenarios.
Smarter
With flexible programming and reliable performance, PLC control can seamlessly adapt to wiring automation, realize efficient collaborative control, and improve the intelligent level of production process.
Small floor space
Small size to meet the needs of laboratories and narrow spaces, saving floor space.
human engineering
Study the interaction between human, machine and environment, optimize the design to improve efficiency, comfort and safety, and realize the harmonious adaptation of human, object and environment.
Man-machine interconnection
Through the interactive connection between technical equipment and machines, information exchange and cooperation can be realized, efficiency can be improved, remote monitoring and diagnosis can be carried out, and cloud services can be provided.
